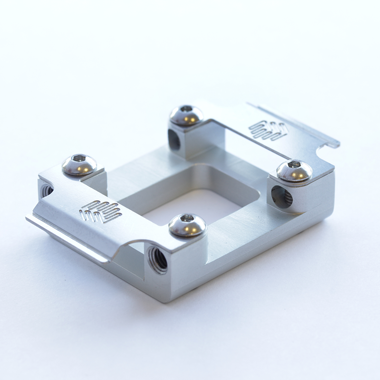

CONNECTOR H Interface

제품설명

The H Interface works in conjunction with two Linear Connectors 4-way (Part No. 3000024), providing fluidic connections to glass microfluidic chips.


H Interface 7-way (11.5mm)

H Interface 7-way (22.5mm)

H Interface 7-way (45mm)

  • Number of ports: 14
  • High density of connections
  • Operating pressure: 30 bar
  • Operating temperature range of fluid: -15 °C to 150 °C
  • Quick and easy to connect/disconnect
  • Low dead volume
  • Wetted materials: glass, FEP and FKM
  • Excellent chemical compatibility
Chip H Interface
  • Flexible solution - compatible with chips of dimensions
    22.5 x 15.0 x 4.0 mm
  • Enables fast and reliable connections between Dolomite chips
    and 1.6 mm tubing
  • Small footprint
  • High chemical resistance
  • Variable I.D./O.D. pipe connection
  • Low dead volume
  • Wide temperature and pressure range
Double H interface
  • Chip thickness: 4mm
  • Chip width: 15mm
  • Number of interface ports: 4
  • Number of tubing ports: 8
  • Operation pressure: 10bar
  • Operation temperature of seals and gasket: -15 °C to 250 °C
  • Provides a microchannel to microchannel connection between 2 chips
  • Enables microfluidic paths with different surface treatments to be created
  • Platform for double emulsion generation
  • Excellent chemical compatibility
  • Low dead volume connections
  • Quick to connect/disconnect
  • High visibility (excellent access for optics)
Triple Top H Interface (45mm)
  • High density of connections
  • Micro-scale alignment of flow paths
  • Low dead volume
  • Quick connect and disconnect
  • High pressure capability
  • Excellent chemical compatibility
  • Robust design
