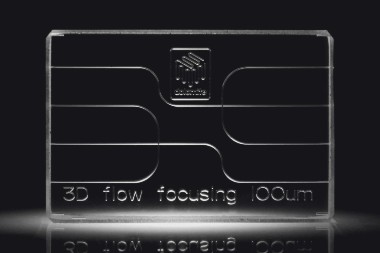

CHIP 3D Flow Focusing Chip

Part number 3200934
Channel Size : 14, 30, 100, 170 µm
Coating : Hydrophilic, hydrophobic, fluorophilic
Chip Reagents : 1Reagent

제품설명

Suitable for generating highly monodisperse organic-in-aqueous droplets between 10 µm to 28 µm. The junction has 1 inlet for the droplet phase fluid (organic), and 1 inlet for the carrier phase fluid (aqueous) which splits on the chip.

The 100 µm and the 170 µm 3D chips are compatible with the H Interface (Part No. 3000155) and Linear Connector 4-Way (Part No. 3000024) which enable quick and easy connections. The 30 µm and the 14 µm chips are compatible with the top interface (Part No. 3000109) and the linear connector 4-Way (Part No. 3000024) which enable quick and easy connections.



Extended lifetime when working with polymerising or surface fouling droplet fluids

●Enables production of highly monodisperse aqueous in organic droplets between 5 µm to 140 µm

●Simple to use

●High visibility and good accessibility for microscope objective

●Wide temperature and pressure range

●Excellent chemical compatibility
