제품 정보

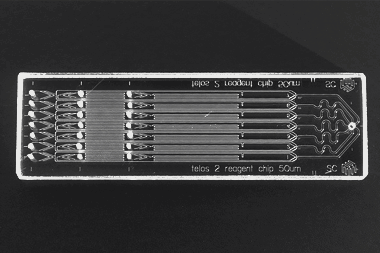

CHIP Telos®2 Reagent Chip SC

Part number : 3200664
Coating : Hydrophilic, hydrophobic, fluorophilic
Connection Type : surface

제품설명

The Telos 2 Reagent Chip has 7 parallel junctions and can be used separately from the Telos system with the Telos Starter Kit SC. When used in conjunction with the Telos system up to 10 chips can be run in parallel (70 droplet junctions) for higher-throughput applications.

Available in etch depths of 100 µm and 50 µm, the Telos 2 Reagent Chip SC allows oil droplets to be created in water. Other options include:

  • Aqueous droplets in an organic carrier phase - Telos 2 Reagent Chip SC hydrophobic
  • Aqueous droplets in a fluorinated oil phase - Telos 2 Reagent Chip SC, fluorophilic

Features and benefits:

  • Rapid generation of droplets containing 2 reagents
  • Ideal for carrying out reactions inside droplets
  • Channel height: 100 µm or 50 µm
  • High visibility (excellent access for optics)
  • Straight through flow path for improved droplet collection
  • Excellent chemical compatibility
  • Compatible with the Telos very high throughput production system
  • Operating pressure: up to 30bar
